FROG (2005) TAM58354

TAM58354 FROG (2005)

MANUAL

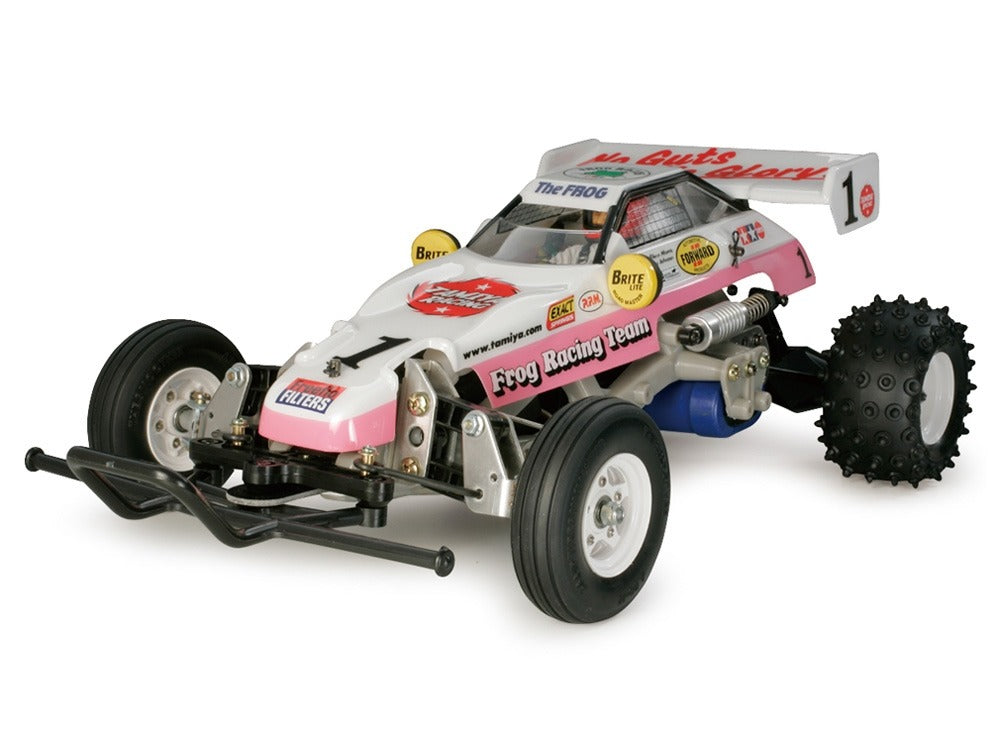

First introduced in 1983, the 2WD racing buggy Frog made a huge splash with its eye-catching design and high-performance running. The Frog now makes a comeback, updated for a new age, but with its basic structure essentially unchanged. Preserving its characteristic space frame, the oil dampers for trailing-arm type rear suspension have been updated to diaphragm type. The rear drive shaft features a dog bone-type joint for secure power transmission. Sleek polycarbonate body remains the same, while 3-piece wheels feature front grooved and rear spike tires for excellent off-road running.

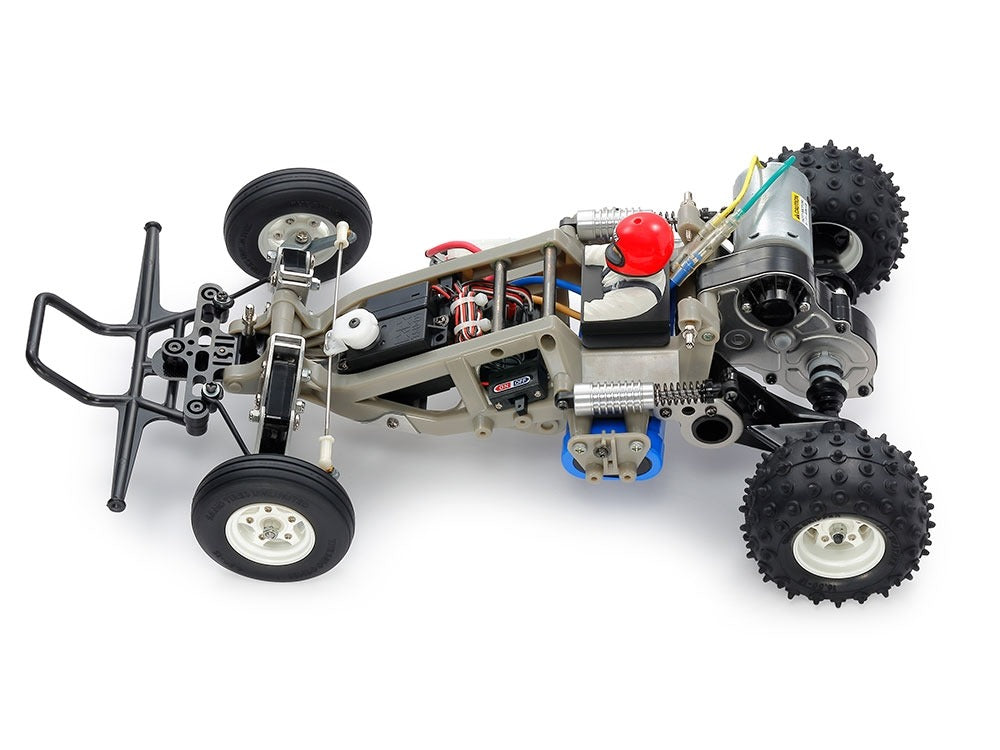

2WD Chassis Packed with Innovation

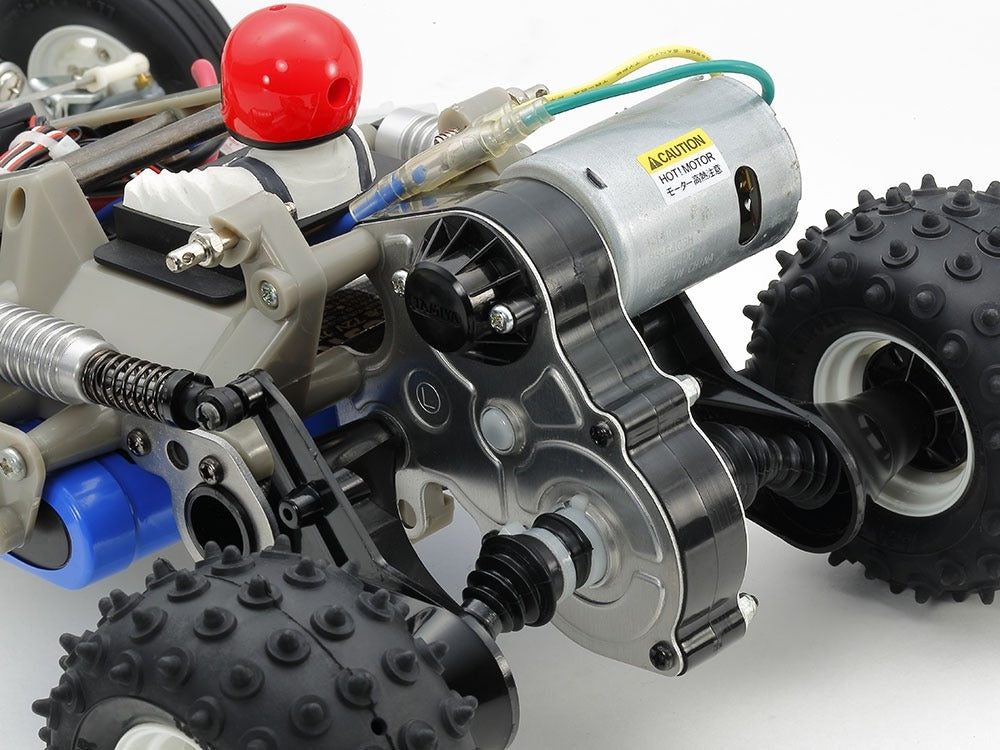

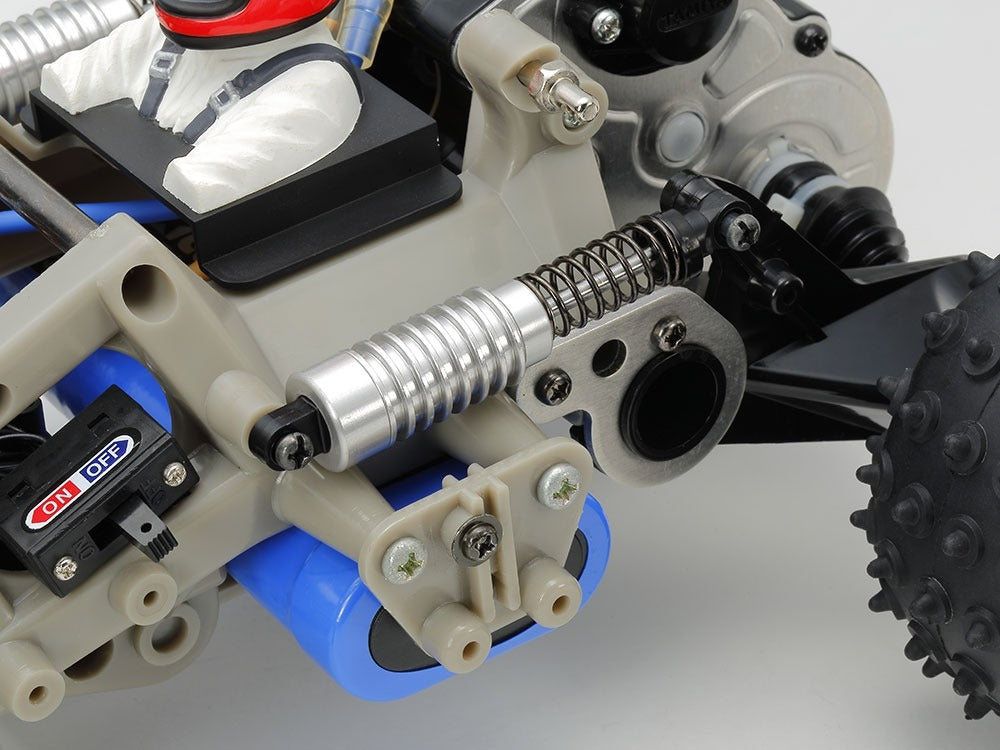

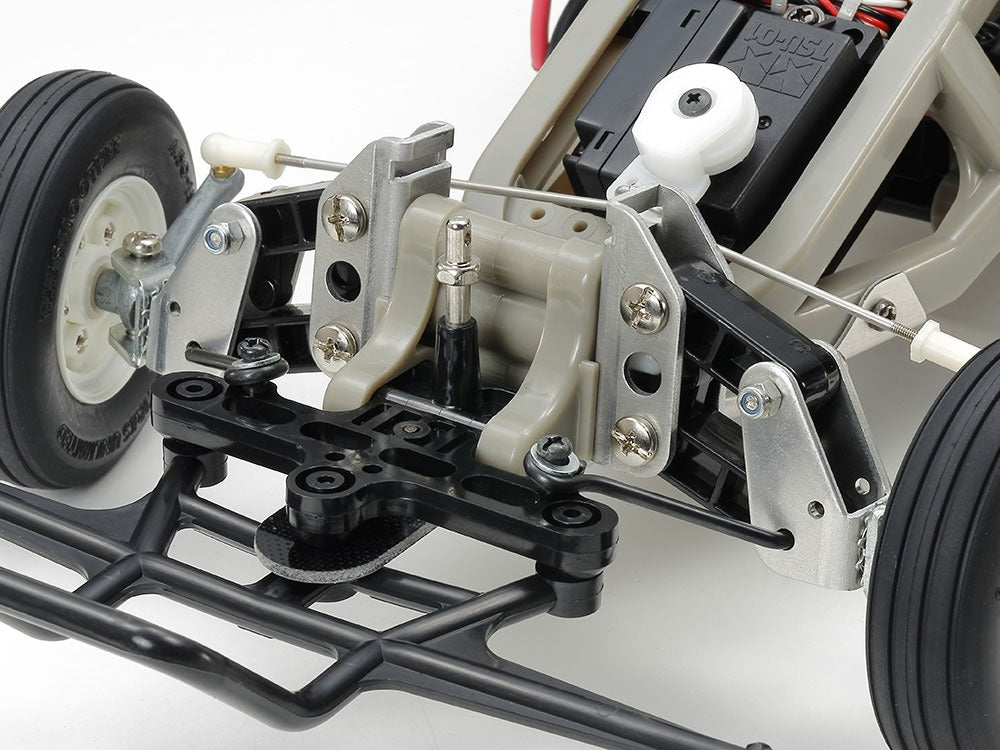

Electric R/C racing buggy features ABS space frame and nylon suspension and bumper for a lightweight yet rugged form that is perfect for off-road running. The battery is held in an ultra-low position, giving this car the stability and weight balance to handle rough terrain and wild jumps. Advanced 4-wheel independent suspension composed of front double wishbone type featuring in-board spring and durable steel radius arm. Rear trailing arm type features horizontally mounted aluminum cylinder oil dampers for effective shock absorption. Sealed differential gearbox ensures high-speed cornering, while full ball bearings and a 3-step gear ratio secure maximum transmission efficiency.

• Adjustable Gear Ratio Fixed
• Bearings Plastic bushing
• Body Material Polycarbonate
• Body Stickers Included
• Chassis Material Plastic
• Construction Type Assembly Kit
• Differential Type Gear
• Drive Type 2WD
• Electronic Speed Control (ESC) Includes HobbyWing THW 1060 Brushed Motor ESC (2-3S)
• Motor 540-brushed type
• Required To Complete a 2-channel radio, steering servo, 7.2-volt battery & battery charger, and Tamiya PS paint.
• Scale 1/10
• Shock Damper Oil-filled damper
• Suspension: Fully independent suspension.
