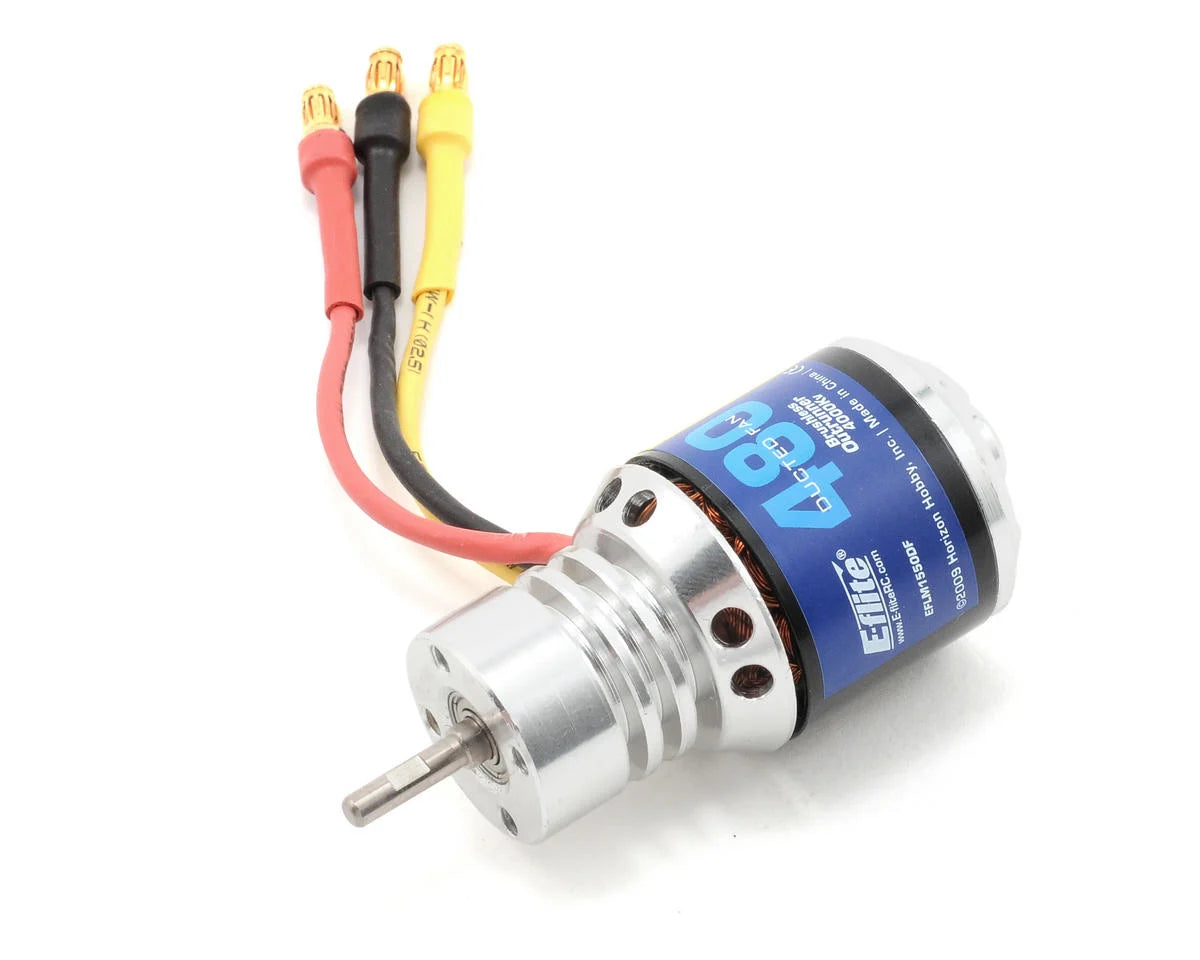

E-flite BL480 Ducted Fan Outrunner Motor, 4000Kv

E-flite BL480 Ducted Fan Outrunner Motor, 4000Kv

$54.99 CAD
$54.99 CAD
Sale Sold out
Shipping calculated at checkout.
Parameter 3S (11.1V) 4S (14.8V)
Static Thrust 0.9 lbs 1.8 lbs
RPM 39,000 49,000
Power (Watts) 255 W 590 W
Current Draw 25 A 43 A


Key Features

  • Perfect fit for 65mm EDF units requiring a 20mm diameter inrunner motor

  • Supports up to 600 input watts

  • Durable build with ball bearings and hardened steel shaft

  • Efficient 6-pole motor design


Specifications

  • Motor Type: Brushless Ducted Fan

  • Size: BL480 (for 65mm EDF units)

  • Bearings: Ball bearings

  • Kv Rating: 4000 RPM/Volt

  • Internal Resistance (Ri): 0.027 ohms

  • Idle Current (Io): 4.2 A @ 10V

  • Continuous Current: 33 A

  • Max Burst Current: 45 A (15 seconds)

  • Compatible Cells: 3S–4S Li-Po or 10–14 NiMH/NiCd

  • Weight: 82 g (2.9 oz)

  • Overall Diameter: 28 mm (1.10 in)

  • Mounting Diameter: 20 mm (0.70 in)

  • Shaft Diameter: 3 mm (0.12 in)

  • Overall Length: 53.2 mm (2.10 in)
