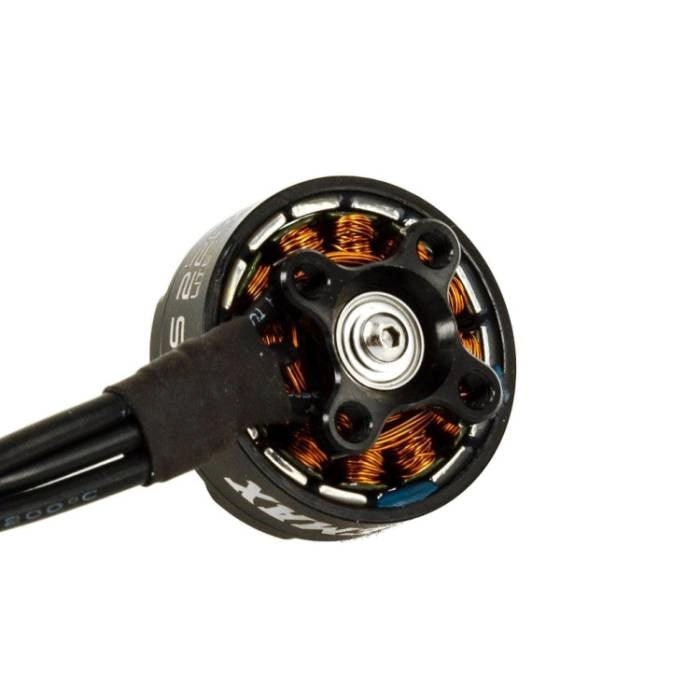

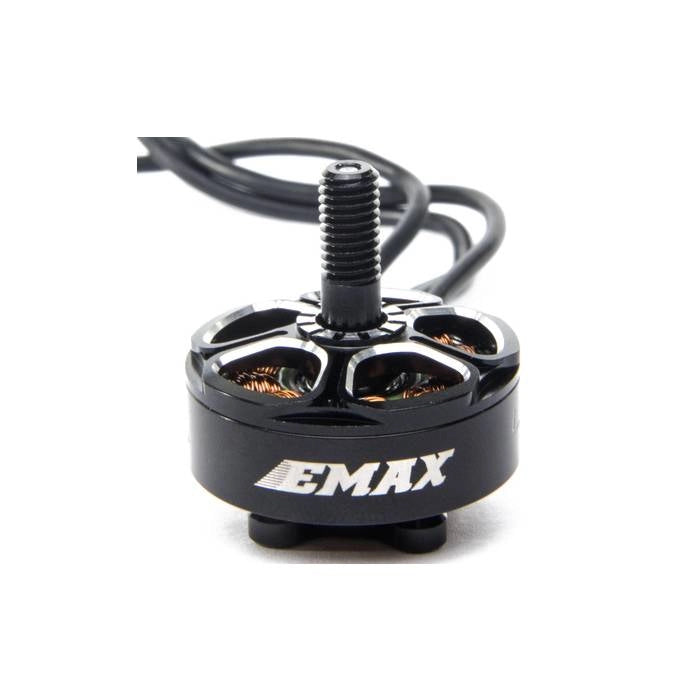

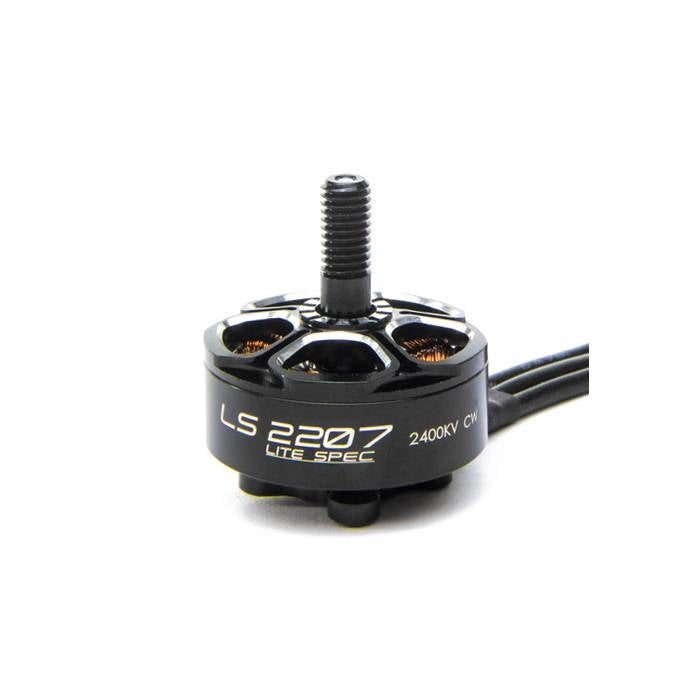

EMAX LS2207 Lite Spec 2400kv Motor

Features

• NSK high-efficiency bearings
• 0.15mm silicon steel laminations
• Aluminum shaft with hardened steel core
• 1.8mm N48SH ARC Magnets
• Screw capture for bell. Easy to service
• Stealth black anodized color, with silver beveled edges
• Reduced base size. Lower the weight and easier to make sure not to short your wires with long screws.
• 16mm x 16mm mounting holes ( 19x16 is the past) future frames don’t need to have slotted mounting holes.
• 120mm 18AWG wire. Testing has shown a 5% increase in performance with thicker gauged wire compared to 20AWG wire.
• New bell design with upper and lower beam support to reduce damage from impacts.

Specifications

• Configuration: 12N14P
• Diameter: 27.5mm
• Height: 31.2mm
• Prop Shaft Diameter: 5mm
• KV: 2400
• Voltage Input: 3-5s LiPo
• Max.thrust: 1271g
• Weight: 35.7g

Includes

• 1x Motor
• 5x 3mm arm mounting screws
• 5x 4mm arm mounting screws
• 1x replacement bell housing screw
• 1x replacement bell housing washer
• 1x EMAX Stickers
