Hitec
Hitec HS-425BB Deluxe Ball Bearing, Nylon, Dual BB Servo HIT31425S
Hitec HS-425BB Deluxe Ball Bearing, Nylon, Dual BB Servo HIT31425S
Regular price
$29.99 CAD
Regular price
Sale price
$29.99 CAD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
The HS-425BB is offered with dual ball bearings, impact resin gears and high performance circuitry. As one of our longest running production servos, it has proven to be a durable and dependable product year after year.
Features
- Durable and Dependable Construction
- Durable Resin Gear Train
- Dual Ball Bearings
- High Performance Circuitry
| Performance Specifications | |
|---|---|
| Operating Voltage Range (Volts DC): | 4.8V ~ 6.0V |
| Speed (Second @ 60°): | 0.21 ~ 0.16 |
| Maximum Torque Range oz. / in.: | 46 ~ 57 |
| Maximum Torque Range kg. / cm.: | 3.3 ~ 4.1 |
| Current Draw at Idle: | 8 mA |
| No Load Operating Current Draw: | 150 mA |
| Stall Current Draw: | 800 mA |
| Dead Band Width: | 8 us |
| Physical Specifications | |

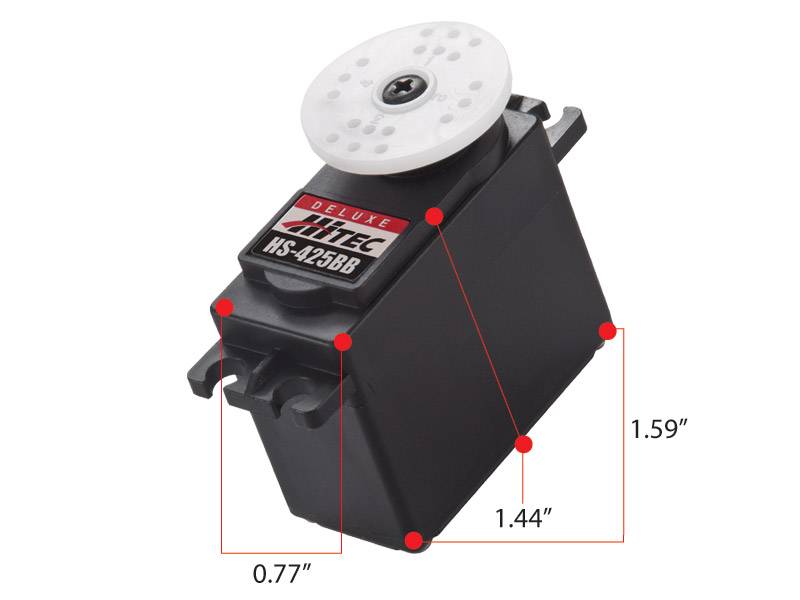

| Dimensions (Inches): | 1.59 x 0.77 x 1.44 |
| Dimensions (Metric): | 40.6 x 19.8 x 36.6 |
| Weight (Ounces): | 1.6 |
| Weight (Gram): | 45.5 |
| Circuit Type: | HT7003 Analog SMT |
| Motor Type: | 3 Pole Metal Brush Ferrite |
| Gear Material: | Nylon |
| Bearing Type: | Dual Ball Bearing |
| Output Shaft (type / 0mm): | Standard 24 |
| Case Material: | Plastic |
| Dust / Water Resistance: | N / A |
| Connector Gauge (AWG) / Strand Count: | 25 / 40 |
| Radio Control Applications | |
| Parkflyer: | N / A |
| Sport Plane: | 50 - 64 oz. |
| Sailplane: | 2 meters and up |
| 3D Performance: | N / A |
| Scale: | 50 - 64 oz. |
| Electric Helicopter: | N / A |
| Gas Helicopter: | N / A |
| On Road: | N / A |
| Monster Truck: | N / A |
| Buggies: | N / A |
| Truggies: | N / A |
| Short Course / Truck: | N / A |
| Crawlers: | N / A |
| Sail Boat: | < 1 meter |
| Power Boat: | 1/10th |
