Hitec HS-5065MG Digital High Torque Metal Gear Feather Servo
Hitec HS-5065MG Digital High Torque Metal Gear Feather Servo
Regular price
$49.99 CAD
Regular price
Sale price
$49.99 CAD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Hitec raised the bar by offering the ever popular HS-65 in a new digital version! The HS-5065MG High Performance Micro Servo features Hitec's digital, programmable circuit for incredible resolution, centering and holding torque; also featuring metal gears, a top-ball bearing, and at 31 oz./in. of torque with a quick transit time of 0.11 sec at 6 volts, it is no doubt THE choice for high performance micro helicopters, electric park flyers, and 1/18 scale cars.
Features:
- Top Selling Digital Feather Servo
- Ball Bearing-Supported Output Shaft
- Standard Programmable Digital Circuit for More Holding Power
- High Torque and High Speed
- Accurate Centering
Programmable Functions:
- End Point Adjustments
- Direction
- Fail Safe
- Dead Band
- Speed (Slower)
- Data Save / Load
- Program Reset
| Performance Specifications | |
|---|---|
| Operating Voltage Range (Volts DC): | 4.8V ~ 6.0V |
| Speed (Second @ 60°): | 0.14 ~ 0.11 |
| Maximum Torque Range oz. / in.: | 25 ~ 31 |
| Maximum Torque Range kg. / cm.: | 1.8 ~ 2.2 |
| Current Draw at Idle: | 3 mA |
| No Load Operating Current Draw: | 220 mA |
| Stall Current Draw: | 1,200 mA |
| Dead Band Width: | 2 us |
| Physical Specifications | |

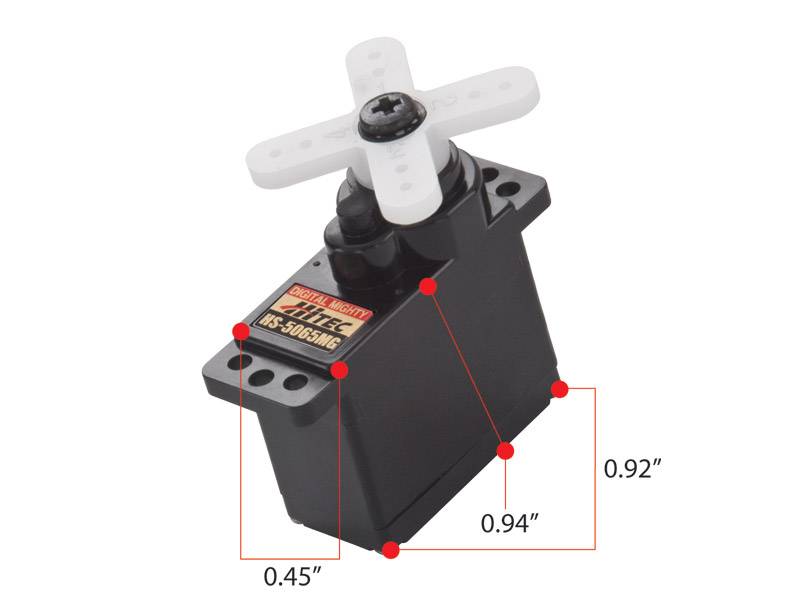

| Dimensions (Inches): | 0.92 x 0.45 x 0.94 |
| Dimensions (Metric): | 23.6 x 11.6 x 24.0 |
| Weight (Ounces): | 0.42 |
| Weight (Gram): | 11.9 |
| Circuit Type: | G1 Programable Digital |
| Motor Type: | 3 Pole Metal Brush Neodymium |
| Gear Material: | Metal |
| Bearing Type: | Top Ball Bearing |
| Output Shaft (type / 0mm): | Micro 23 |
| Case Material: | Plastic |
| Dust / Water Resistance: | N / A |
| Connector Gauge (AWG) / Strand Count: | 28 / 20 |
| Radio Control Applications | |
| Parkflyer: | < 42 oz. |
| Sport Plane: | 36 - 41 oz. |
| Sailplane: | <2 meter / DLG |
| 3D Performance: | Foamies |
| Scale: | N / A |
| Electric Helicopter: | 400-500mm |
| Gas Helicopter: | 30-39 Class |
| On Road: | 1/16th |
| Monster Truck: | N / A |
| Buggies: | N / A |
| Truggies: | N / A |
| Short Course / Truck: | N / A |
| Crawlers: | N / A |
| Sail Boat: | N / A |
| Power Boat: | 1/18th |
