Hitec

Hitec HS-5245MG Digital Mini Metal Gear, Dual BB Servo HIT35245S

Hitec HS-5245MG Digital Mini Metal Gear, Dual BB Servo HIT35245S

$56.99 CAD
$56.99 CAD
Sale Sold out
Shipping calculated at checkout.

With a custom programmable digital circuit and our strong metal and M/P gear train technology, the HS-5245MG is ideal for applications that call for a small, lightweight, fast and high torque servo.

Features:

  • High Speed and High Torque in a Mini Package
  • Durable Metal Gears
  • Dual Ball Bearings
  • Standard Programmable Digital Circuit for Greater Holding Power
  • Fast, High Torque

Programmable Functions:

  • End Point Adjustments
  • Direction
  • Fail Safe
  • Dead Band
  • Speed (Slower)
  • Data Save / Load
  • Program Reset
Performance Specifications
Operating Voltage Range (Volts DC): 4.8V ~ 6.0V
Speed (Second @ 60°): 0.15 ~ 0.12
Maximum Torque Range oz. / in.: 61 ~ 76
Maximum Torque Range kg. / cm.: 4.4 ~ 5.5
Current Draw at Idle: 3 mA
No Load Operating Current Draw: 300 mA
Stall Current Draw: 1,200 mA
Dead Band Width: 4 us
Physical Specifications

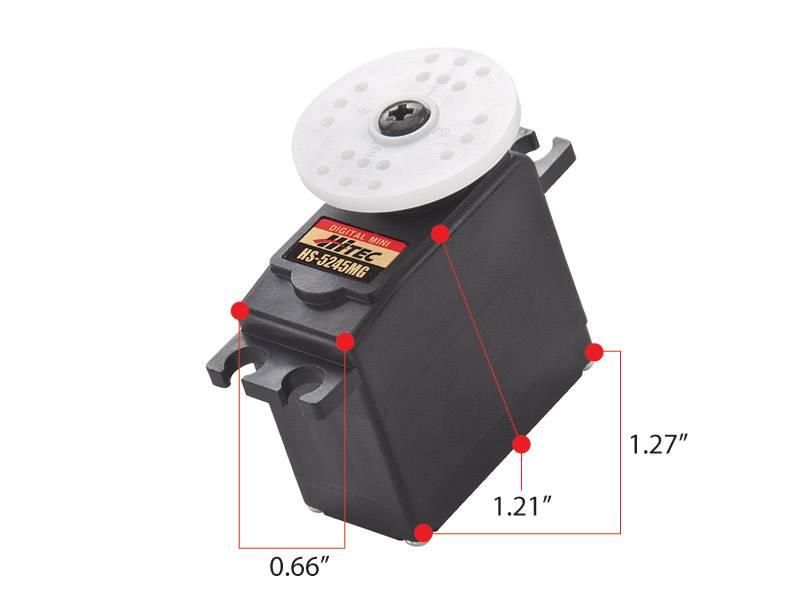

Dimensions (Inches): 1.27 x 0.66 x 1.21
Dimensions (Metric): 32.4 x 16.8 x 30.8
Weight (Ounces): 1.12
Weight (Gram): 32
Circuit Type: G1 Programable Digital
Motor Type: 3 Pole Metal Brush Ferrite
Gear Material: Metal
Bearing Type: Dual Ball Bearing
Output Shaft (type / 0mm): Standard 24
Case Material: Plastic
Dust / Water Resistance: N / A
Connector Gauge (AWG) / Strand Count: 25 / 40
Radio Control Applications
Parkflyer: N / A
Sport Plane: 50 - 64 oz.
Sailplane: 3 meter
3D Performance: 50 - 64 oz.
Scale: N / A
Electric Helicopter: 500mm
Gas Helicopter: 50 - 59 Class
On Road: 1/12th
Monster Truck: N / A
Buggies: N / A
Truggies: N / A
Short Course / Truck: N / A
Crawlers: 1/18th
Sail Boat: < 1 meter
Power Boat: 1/16th
