Hitec

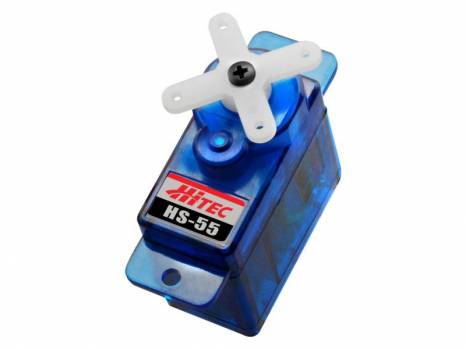

Hitec HS-55 8g Coreless Nylon Gear Analog Micro Servo
Hitec HS-55 8g Coreless Nylon Gear Analog Micro Servo
Regular price
$24.99 CAD
Regular price
Sale price
$24.99 CAD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
The HS-55 set the standard for affordable performance, offering precision components that have been engineered to provide long lasting trouble free service! Featured in a hundred model aircraft reviews worldwide, the HS-55 is your best choice when it comes to controlling "smaller" Electric's and Park Flyers.
Features:
- Affordable Performance
- Precision Components
- Strong, Long-Lasting Nylon Gears
- Market's Most Reliable Micro Servo
- Most Popular Servo
| Performance Specifications | |
|---|---|
| Operating Voltage Range (Volts DC): | 4.8V ~ 6.0V |
| Speed (Second @ 60°): | 0.17 ~ 0.14 |
| Maximum Torque Range oz. / in.: | 15 ~ 18 |
| Maximum Torque Range kg. / cm.: | 1.1 ~ 1.3 |
| Current Draw at Idle: | 5.5 mA |
| No Load Operating Current Draw: | 150 mA |
| Stall Current Draw: | 450 mA |
| Dead Band Width: | 8 us |
| Physical Specifications | |
| Dimensions (Inches): | 0.89 x 0.45 x 0.94 |
| Dimensions (Metric): | 22.8 x 11.6 x 24.0 |
| Weight (Ounces): | 0.28 |
| Weight (Gram): | 8 |
| Circuit Type: | HT7003 Analog SMT |
| Motor Type: | Coreless Metal Brush |
| Gear Material: | Nylon |
| Bearing Type: | None |
| Output Shaft (type / 0mm): | Feather 15 / 8 |
| Case Material: | Plastic |
| Dust / Water Resistance: | N / A |
| Connector Gauge (AWG) / Strand Count: | 28 / 20 |
| Radio Control Applications | |
| Parkflyer: | < 36 oz. |
| Sport Plane: | 20 - 35 oz. |
| Sailplane: | < 2 meter / DLG |
| 3D Performance: | Foamie |
| Scale: | N / A |
| Electric Helicopter: | 200mm |
| Gas Helicopter: | N / A |
| On Road: | N / A |
| Monster Truck: | N / A |
| Buggies: | N / A |
| Truggies: | N / A |
| Short Course / Truck: | 1/8th |
| Crawlers: | N / A |
| Sail Boat: | N / A |
| Power Boat: | 1/8th |
