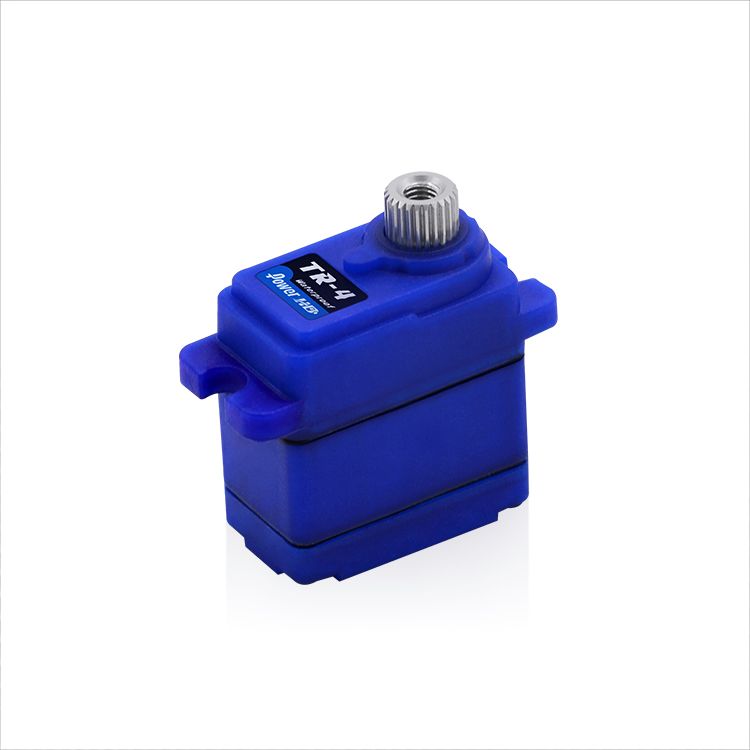

Power HD TR-4 Mini Waterproof Servo 2.6KG 0.10sec@7.4V PHDTR-4
Power HD TR-4 Mini Waterproof Servo 2.6KG 0.10sec@7.4V PHDTR-4
Regular price
$39.99 CAD
Regular price
Sale price
$39.99 CAD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
With a lightning-fast response time of just 0.10 seconds, the TR-4 servo is engineered for precision and performance. Its compact dimensions—22.5 x 12.5 x 24.0 mm—and extended 350mm receiver wire make it a seamless drop-in upgrade for the Traxxas TRX-4. Featuring a 25T metal spline and waterproof gaskets, this servo is built to tackle any terrain with confidence.
🔧 Specifications
| Feature | Details |
|---|---|
| Torque @ 4.8V | 1.8 kg-cm (25.0 oz/in) |
| Torque @ 6.0V | 2.2 kg-cm (30.6 oz/in) |
| Torque @ 7.4V | 2.6 kg-cm (36.1 oz/in) |
| Speed @ 4.8V | 0.15 sec |
| Speed @ 6.0V | 0.12 sec |
| Speed @ 7.4V | 0.10 sec |
| Operating Voltage | 4.8V – 7.4V DC |
| Spline | 25T |
| Wire Length | 350mm / 13.75" |
| Case Color | Blue |
| Weight | 16.0g (0.56 oz) |
| Gear Material | Copper & Aluminum |
| Operating Temperature | -20°C to 60°C |
| Frequency | 1520μs / 50Hz |
| Dimensions |
