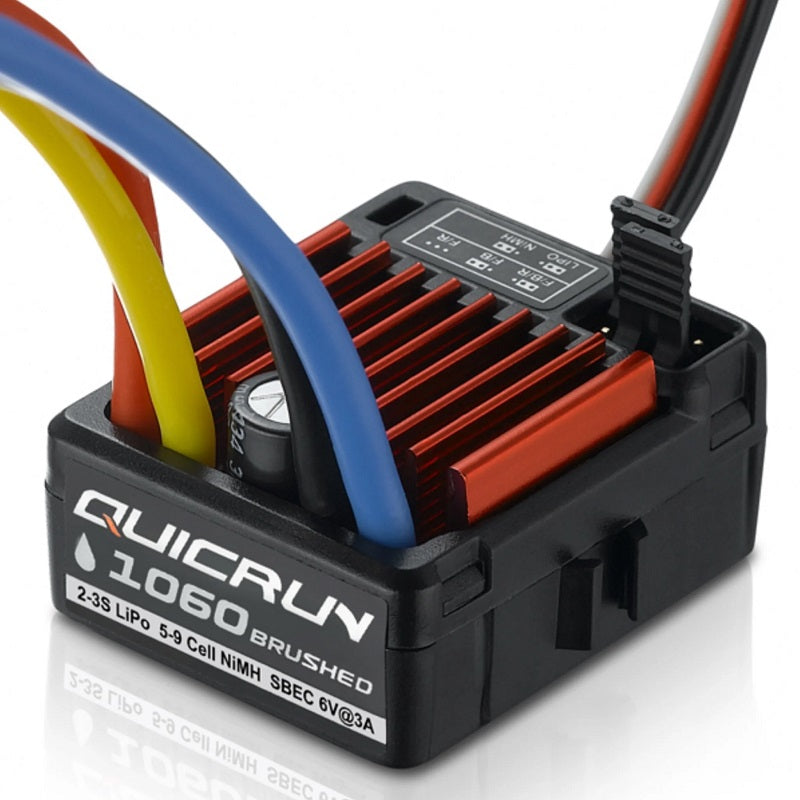

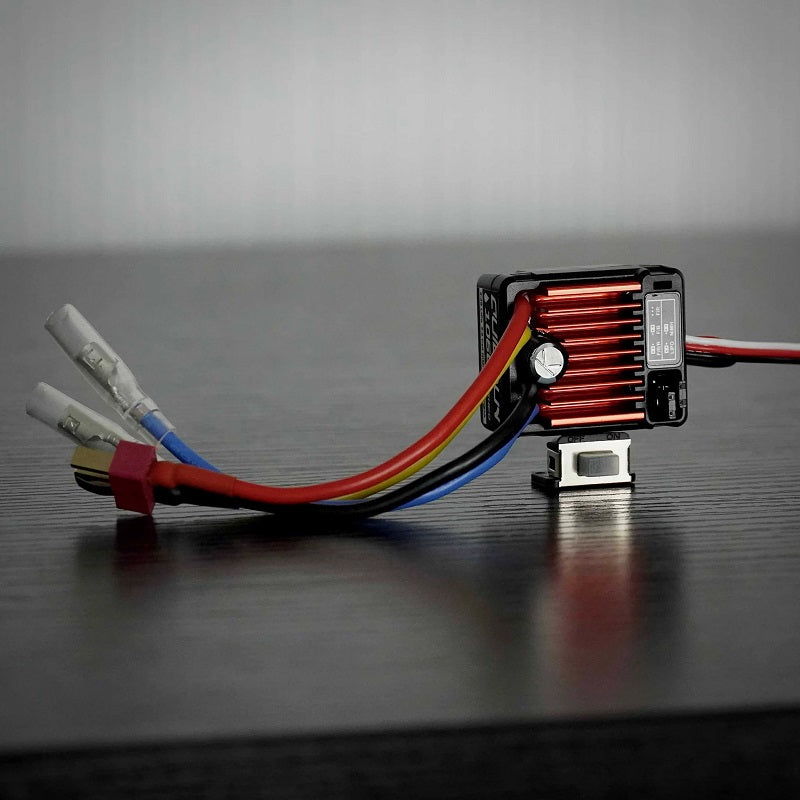

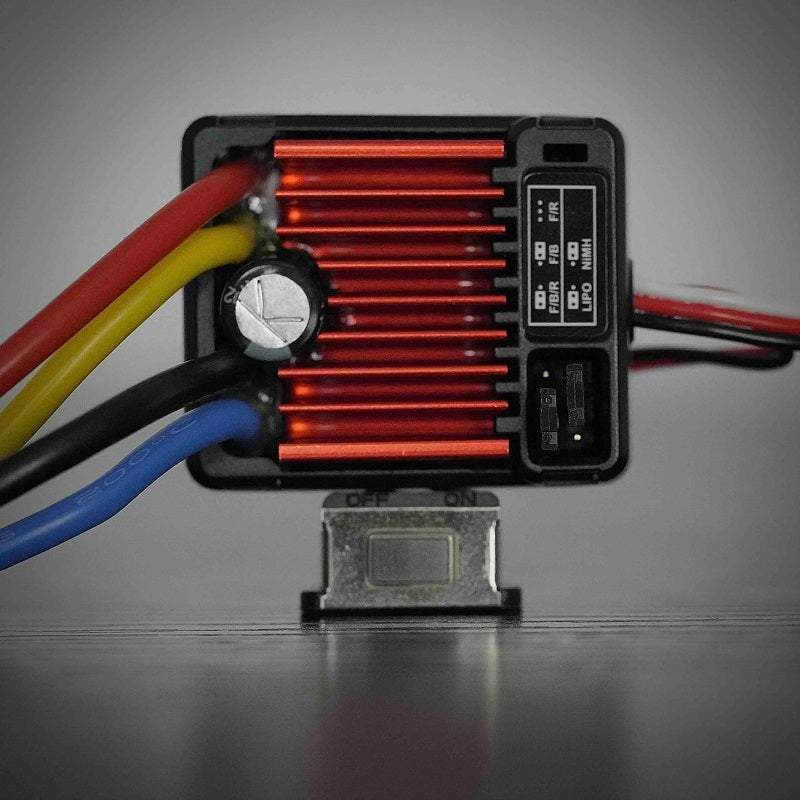

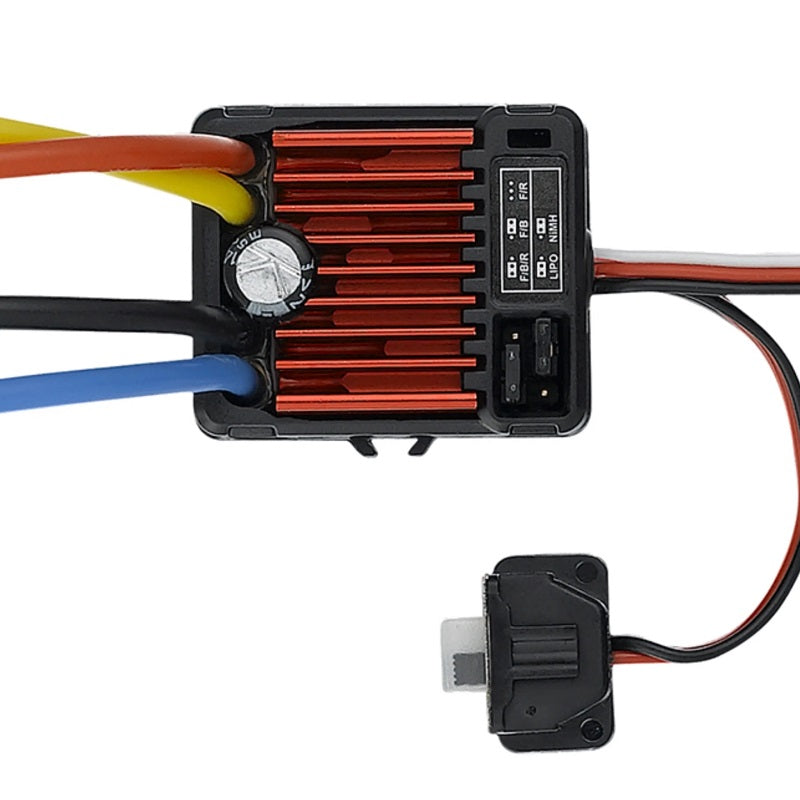

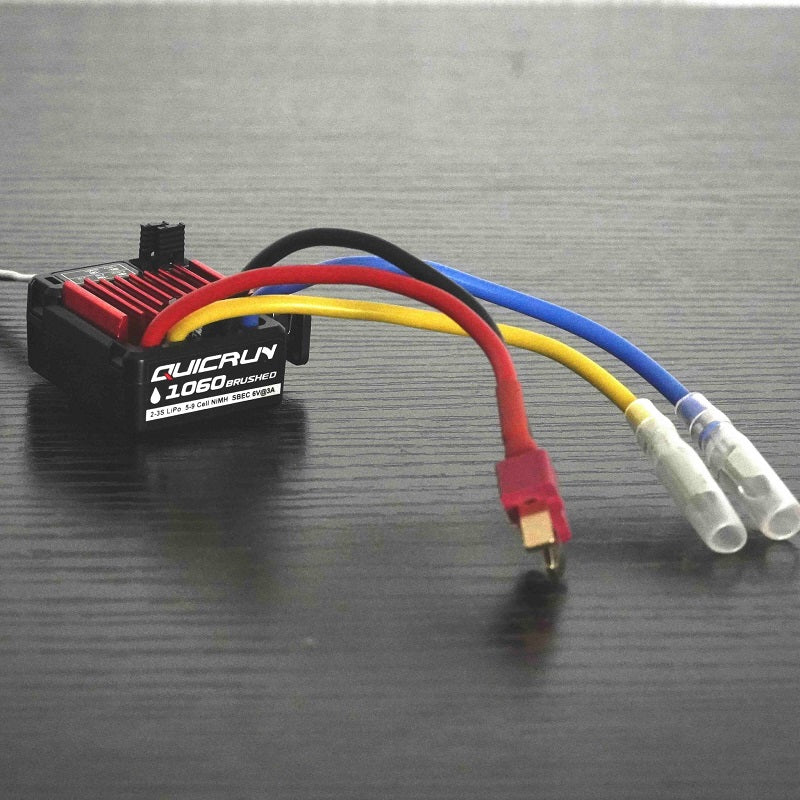

QuicRun 1060 Brushed ESC SBEC T Plug (2-3S) HWI30120203

HWI30120203 QuicRun 1060 Brushed ESC SBEC T Plug (2-3S)

QR1060: Designed for 1:10 SPORT, BOAT, TANKER

This ESC is designed for 1/10th scale touring cars, buggies, short-course trucks, monster trucks, trucks, crawlers, and tanks.

• Weatherproof: Water-proof and dust-proof, suitable for all weather races.

• Compact Design: Small in size, with a built-in capacitor module.

• Versatile Running Modes: Supports Fwd/Rev/Br running mode, fitting various vehicles (Fwd = Forward, Br = Brake, Rev = Reverse).

• High Current Endurance: Great current endurance capability.

• Built-in BEC: Excellent built-in BEC output capacity.

• Ease of Use: Automatic throttle range calibration and easy-to-set ESC parameters with jumpers.

Multiple Protections:

• Over Voltage Protection

• Low Voltage Cut-Off Protection for Battery

• Over-Heating Protection

• Throttle Signal Loss Protection

Warranty: Risk-Free manufacturer's limited warranty available through Authorized Dealers in North America.

Specifications:

• Forward Continuous Current/Peak Current/Resistance: 60A/360A/0.001Ω

• Reverse Continuous Current/Peak Current/Resistance: 30A/180A/0.002Ω

• Motor Type Supported: Brushed Motor

• Car Applicable: 1:10 Touring Car, Buggy, Short Course Truck, Monster, Truggy, Rock Crawler, and Tank

• Suitable Battery:

  • For 2S LiPo or 6 cell NiMH: 540 or 550 Size Motor: >12T, or RPM<30000 @7.2V

  • For 3S LiPo or 9 cell NiMH: 540 or 550 Size Motor: >18T, or RPM<20000 @7.2V

• BEC Output: 2A/5V (Switch Mode)

• PWM Frequency: 1KHz

• Size/Weight: 35.5(L) x 32.18(W) x 18(H) mm / 39g

• Running Modes: Forward/Reverse/Brake, Forward/Brake, Forward/Reverse

• Cooling Fan: No need

• Input Connection: T-Plug
