Quicrun 10BL120 Sensored G2 ESC HWI30125002

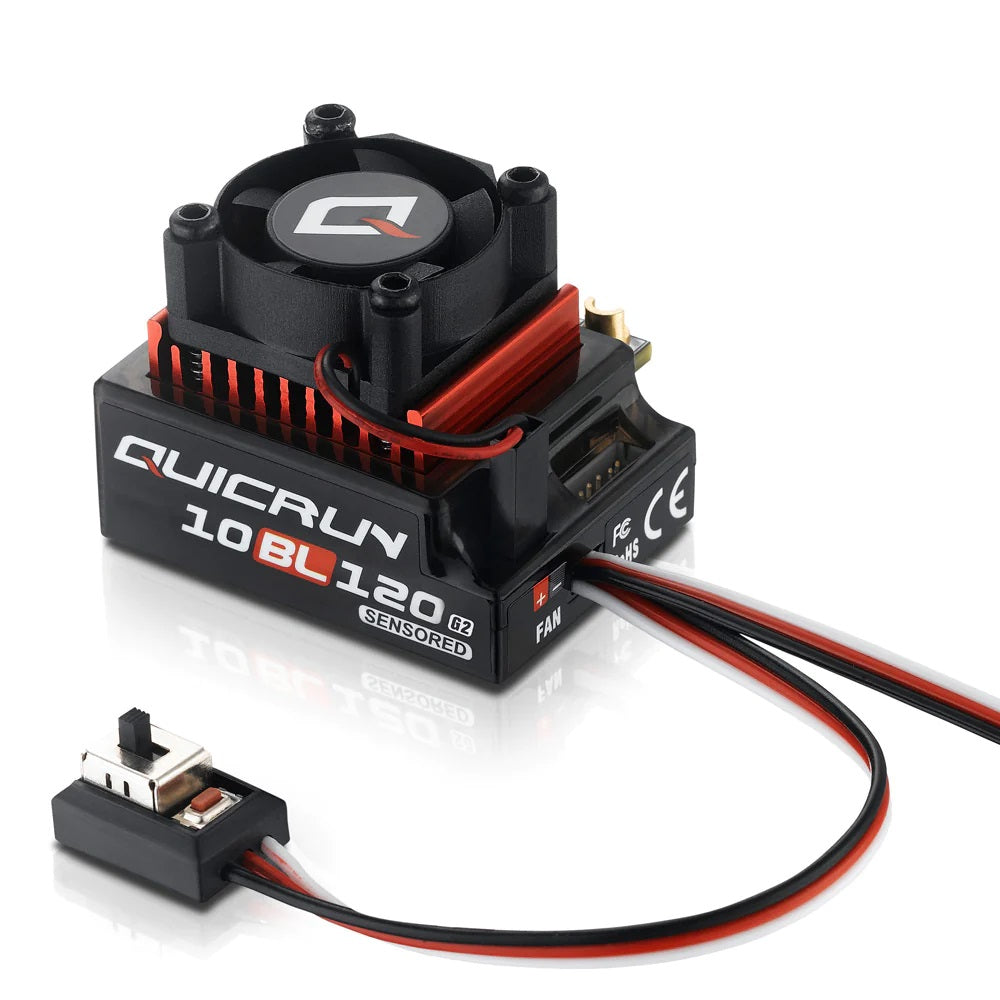

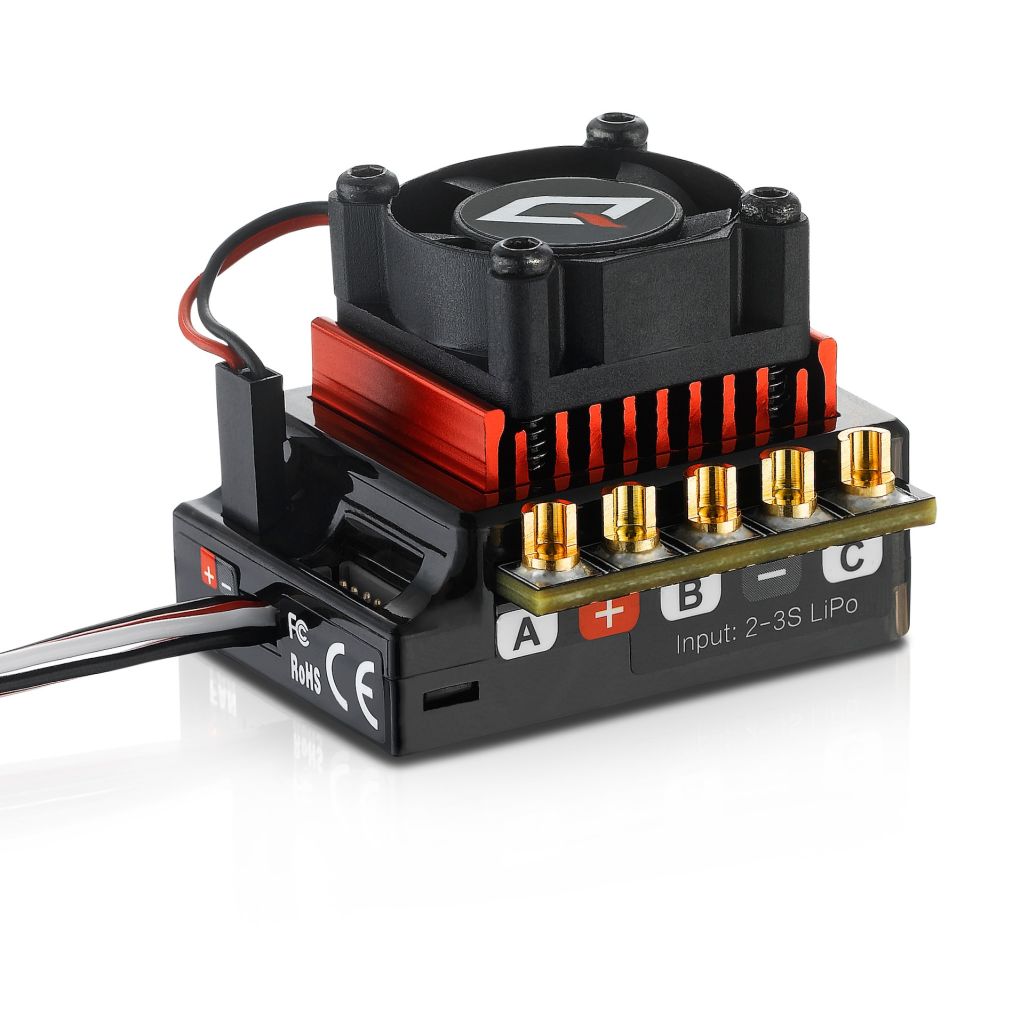

Quicrun 10BL120 Sensored G2 ESC

Note: The recommended T counts are only applicable with the standard 3650(540) size 2 pole motors with the ESC timing set to 0. This ESC is not designed for racing applications.

Features: Designed for 1/10 and 1/12 car general use, this ESC offers high performance at an affordable price, making it a reliable option for users. It is a sensored programmable electric speed controller for brushless motors and is compatible with the LCD program box PRO and LED Program Card (sold separately).

Specifications:

• Continuous/Peak Current: 120A / 760A

• Motor Type: Sensored/Sensorless Brushless Motor

• Applications: 1/10 Touring, Buggy, Drift

• Motor Limit: 2S LiPo: >4.5T; 3S LiPo: >10.5T 3650 Size Motor

• LiPo Cells: 2-3S LiPo

• BEC Output: 6V/7.4V @ 4A (Switch-mode)

• Cooling Fan: Powered by built-in BEC

• Size/Weight: 44(L) x 36.8(W) x 32.3(H) mm / 101.5g (with wires)

• Programming Port: Throttle Cable
