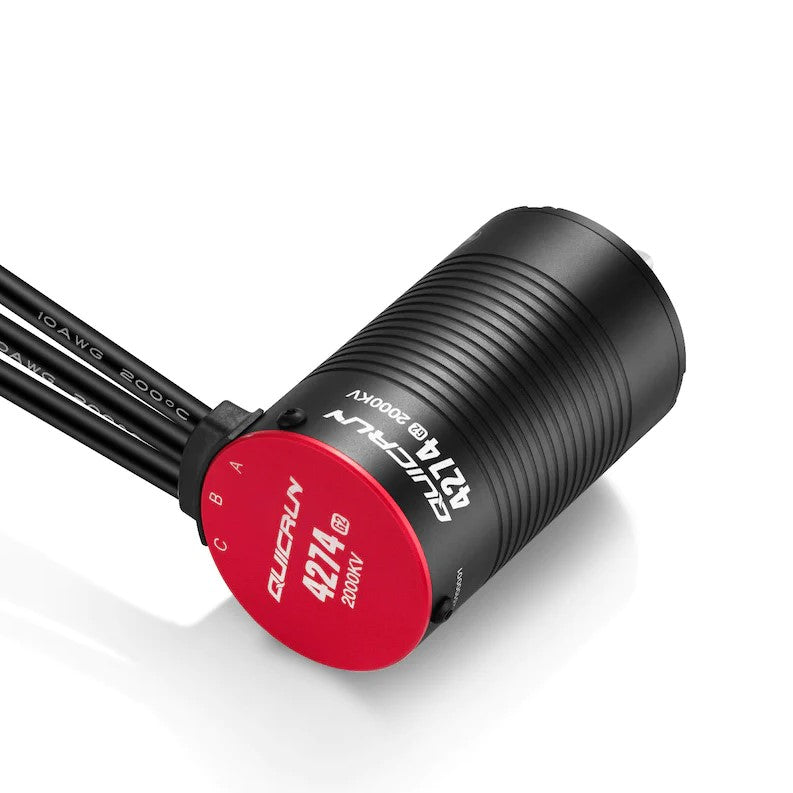

Quicrun 4274SL 2000KV G2 Black Brushless Motor HWI30404700

The QUICRUN 1/8 SL G2 motor ensures efficient power pairing to avoid overload and damage. Careful wiring is essential, and full throttle should not be applied without a pinion. Additionally, the motor case should never exceed 100 degrees Celsius to keep the magnets effective.

Features:

2000KV

3-6S

No load Current (A): 5.9A

Diameter/Length: ?=42mm (1.65") L=74.9mm (2.95")

Shaft Diameter/Length: ?=5mm (.2") L=18.5mm (.73")

Bearing Size (mm): Front=D16xD5xT5 Rear=D13xD5xT4

Four Poles

Weight: 477g
