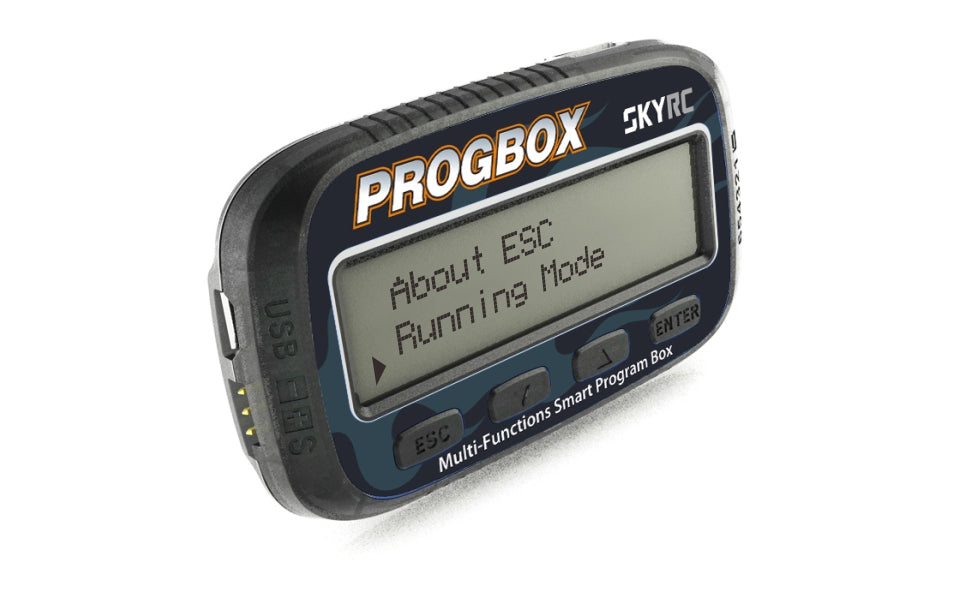

SkyRC PROGBOX Six-in-One Programmer

SkyRC PROGBOX Six-in-One Programmer (Model SK-300079-01)

The SkyRC PROGBOX is a compact, microprocessor-controlled multitool designed for RC enthusiasts who want precision and convenience in one sleek package. With six distinct functions built into a single device, it streamlines everything from ESC programming to motor diagnostics and battery health checks.

🔧 Key Features & Functions

According to SkyRC and trusted hobby retailers, the PROGBOX delivers the following capabilities:

• ESC Programming Configure compatible SkyRC Toro ESCs directly via the onboard LCD—no computer required. (Note: Not compatible with the TS160 model.)

• PC Interface (SkyLINK) Use the PROGBOX as a USB adapter to connect your ESC to a PC. This enables firmware updates and setting adjustments through SkyLINK software.

• LiPo Battery Monitor Assess your LiPo battery’s condition, including:

  • Total cell count and voltage

  • Individual cell voltages

  • Voltage difference between the highest and lowest cells

• PPM Signal Monitor Measure your receiver’s output voltage and analyze the radio’s PPM signal width and frequency.

• Servo Tester Evaluate servo performance—check input voltage, travel range, and peak current—without needing a transmitter.

• Motor KV/RPM Tester Connect the PROGBOX to your motor to read its KV rating, RPM, and input voltage.
