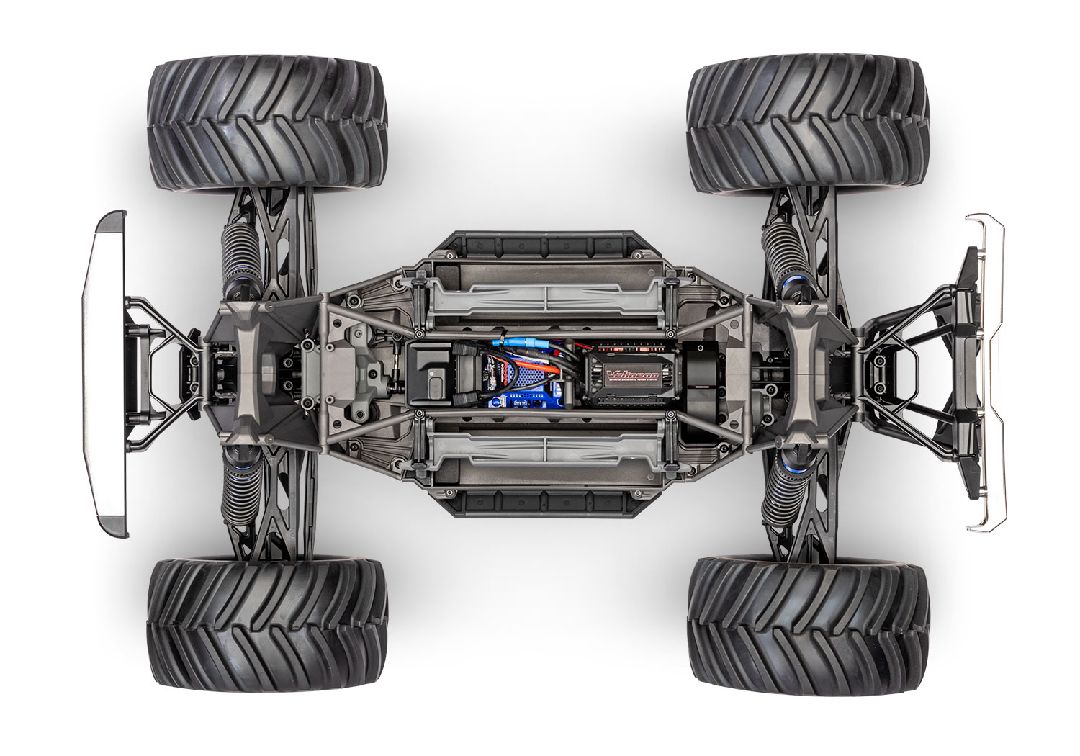

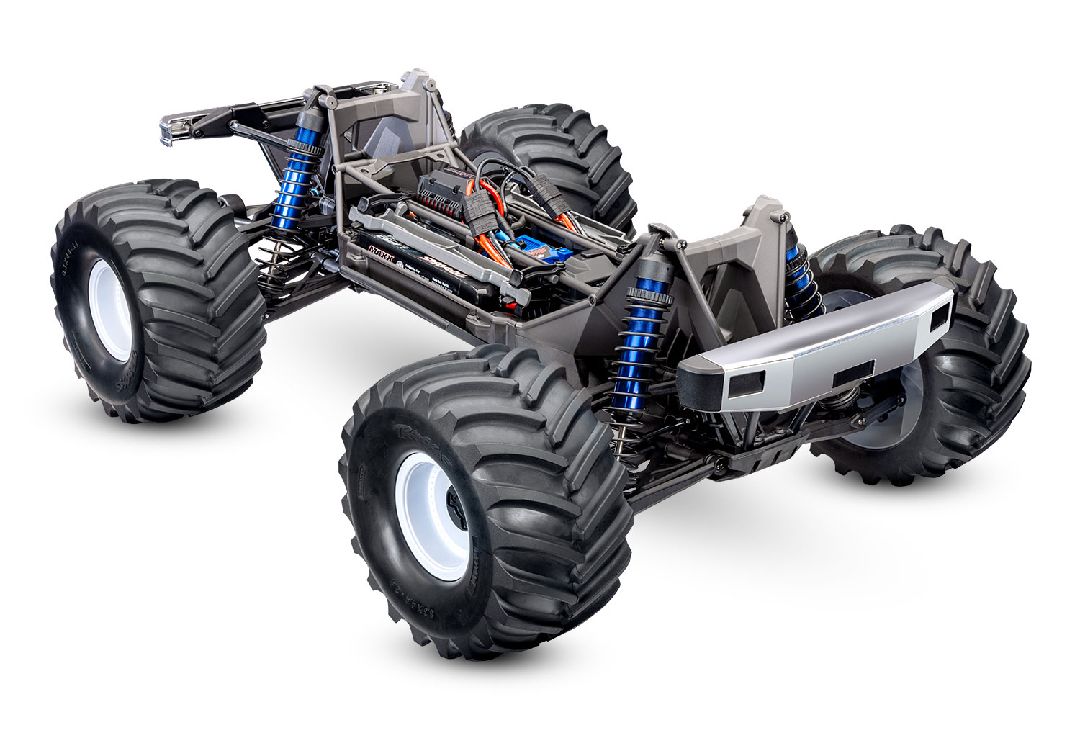

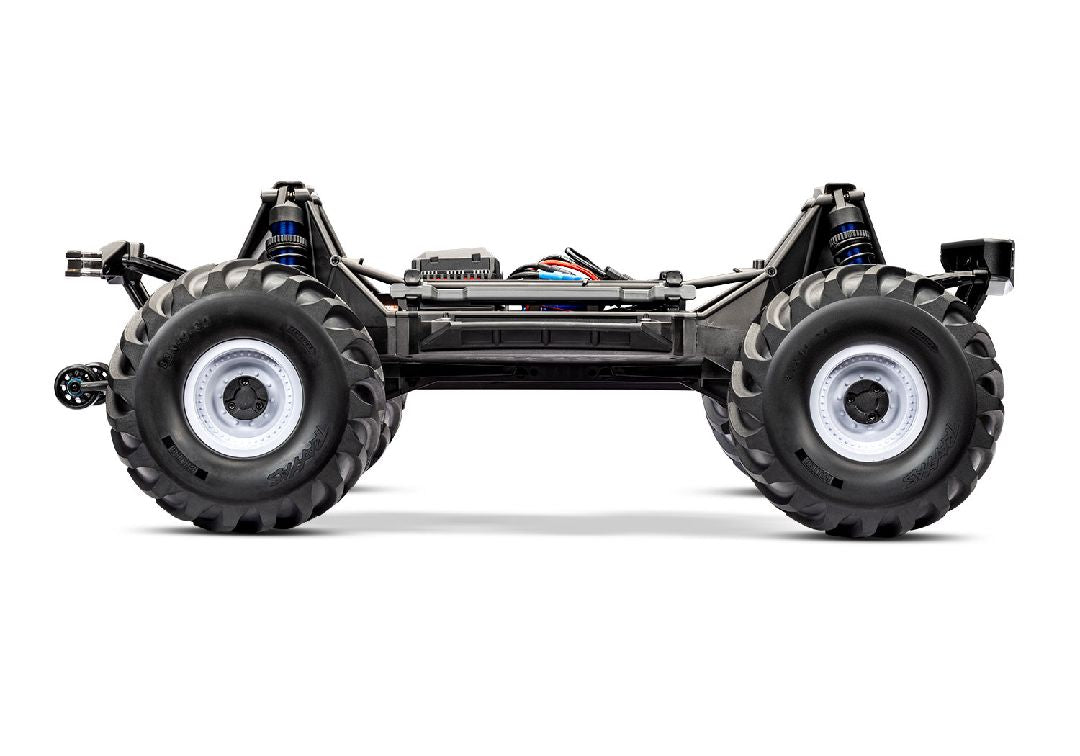

Traxxas X-Maxx MT: Brushless Electric Monster Truck TRA77036-4
Traxxas X-Maxx MT: Brushless Electric Monster Truck TRA77036-4
Regular price
$1,599.99 CAD
Regular price
Sale price
$1,599.99 CAD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Contact us for Shipping options.
!BODY NOT INCLUDED!


| Name: | X-Monster Chassis |
|---|---|
| Type: | Monster Truck |
| Speed: | 50+ mph with two 4s LiPo batteries and optional speed gear (sold separately) |
| Skill Level: | 6 |
| Scale: | X-Truck |
| Weight: | 19.1 pounds (8.66 kg) |
| Length: | 30.67 inches (779 mm) |
| Width: | 21.3 inches (540 mm) |
| Front Track: | 21.3 inches (540 mm) |
| Height: | 13.99 inches (355 mm) |
| Wheelbase: | 18.92 inches (480 mm) |
|---|---|
| Center Ground Clearance: | 4.2 inches (107 mm) |
| Drive System: | Shaft-driven 4WD |
| Driveline: | Shaft-driven 4WD |
| Transmission: | Single speed |
| Differential Type: | Sealed, hardened steel bevel, limited slip |
| Gear Pitch: | 1.0 metric pitch |
| Steering Servo: | 2085XL metal gear ultra-high-torque waterproof |
| Radio System: | TQi™ 2.4 GHz 2-channel |
| Battery Compartment Specs: | 197 mm X 52 mm X 44 mm |
MOTOR SPECS

| Name: | Velineon 1200XL |
|---|---|
| Motor Type: | 1275 Kv sensorless brushless |
| Weight: | 23.44 ounces (665 g) |
| Length: | 4.32 inches (110 mm) |
| Diameter: | 1.88 inches (48 mm) |
| Shaft Size: | 5 mm |
| Connector Type: | 6.5 mm bullet connectors |
ESC SPECS

| Name: | Velineon VXL-8s |
|---|---|
| ESC Type: | Brushless |
| Case Size: | 2.23 inches (58 mm) / 2.83 inches (72 mm) / 1.81 inches (46 mm) |
| Weight: | 7.60 ounces (215.5 g) |
| Motor Connectors: | 6.5 mm bullet connectors |
| Battery Connectors: | Traxxas High-Current Connectors |
| Power Wire: | 10 gauge Maxx® Cable |
